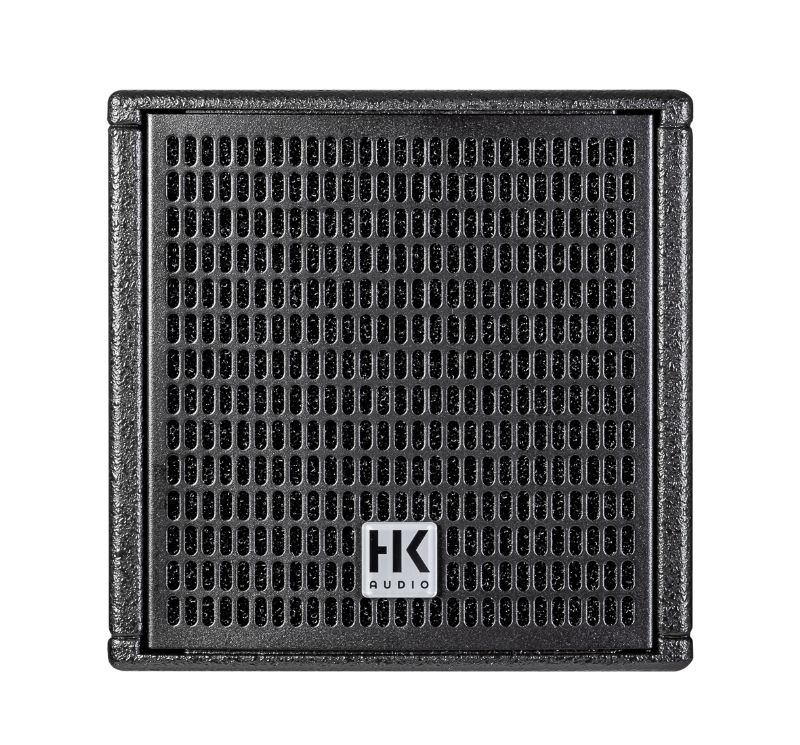

The ultra-compact, cube-shaped FO 5 features an innovative coaxial 5?/1? transducer with 110° dispersion, in which the silk dome tweeter uses the shape of the woofer cone as a wave guide. This makes it particularly suitable for close listening distances and ideal for use as a delay speaker in larger rooms for front sound reinforcement or nearfill at the edge of the stage in fixed installations. In combination with the S112 (F) subwoofer, it grows to full size and offers a powerful full-range sound reinforcement solution that will please even the most discerning ears. In addition to nearfield monitoring at lecterns, other areas of application include high-quality hospitality or background sound reinforcement as well as unobtrusive placement in exhibitions, for elaborate immersive audio applications with many sources or simply for use by Power Hi-Fi enthusiasts. With its extensive range of accessories, the FO 5 can be quickly and safely installated in all standard applications, but can also handle more specialised requirements with ease.

• Concept: Passive 2-way mid/high unit
• Cabinet principle: Bass reflex
• Power handling RMS: 100 W
• Power handling program: 200 W
• Power handling peak: 400 W
• Nominal impedance (According to EN 60268-5 (minimum value not less than 80% of nominal value)): 8 ohms
• Max. SPL average (1 m, 10 % THD @ 100 Hz - 20 kHz, (EN 60268-21), full space): 109 dB
• Max. SPL peak (1 m, 10 % THD @ 2 kHz, full space): 112 dB
• Sensitivity 1 W/1 m (100 Hz - 20 kHz, full space): 87 dB
• Crossover frequency: 3.1 kHz
• Frequency range -6 dB: 81 Hz - 20 kHz
• Frequency range -10 dB: 75 Hz - 20 kHz
• Dispersion angle -6 dB (circular): 110°
• Ball impact resistance (DIN 18032-3): certified (MPA University Stuttgart)
• IP protection class (EN 60529): not specified
• Low-/mid frequency: 1x 5" Celestion coxial cone speaker with ferrite magnet and 1.5" voice coil
• High frequency: 1 x 1" Celestion silk dome tweeter with neodymium magnet and 1" voice coil
• Crossover: High pass: 18 dB/octave, low pass: 12 dB/octave
• High frequency protection circuit: Self-healing PTC fuse
• Horn: Coaxial membrane functions as wave guide
• Input: 1 x NL4 Speakon
• Output/parallel output: 1 x NL4 Speakon
• Pin assignment: 1+/- (input/parallel output), 2+/- (wired through)
• Lab.Gruppen: IPX
• LEA Professional: Sharkware
• Filter specifications in tabular form for frequency response equalization Without limiter specifications: Biamp Tesira BSS Lab.gruppen Lake Linea Research Marani Powersoft QSC Q-SYS Symetrix
• Mounting points: 2 x M6 at the side, 4 x M4 at the rear
• Cabinet material: MDF
• Cabinet surface: 1-component acrylic enamel
• Color : Jet black (RAL 9005), signal white (RAL 9003) or special color according to catalog
• Front grille: Steel front grille with anticorrosive coating, backed acoustic foam
• Optional accessories: U-bracket, L-bracket, BM-360, adapter plate to VESA MIS-D (100 x 100 mm)
• Rear hole pattern: VESA MIS-D (100 x 100 mm)
• Dimensions (WxHxD): 195 x 195 x 195 mm 7.68 x 7.68 x 7.
