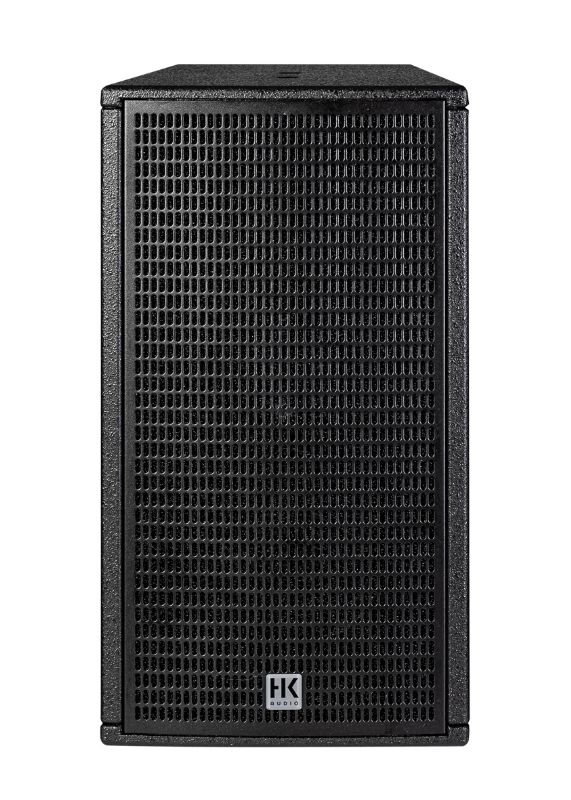

The compact FINEO FO?8 is designed as a passive 2-way system and has a modern, ultra-slim and space-saving trapezoidal cabinet. With its 8? cone speaker with 1.75? voice coil, the FO?8 provides a solid foundation for speech or near-field sound reinforcement and balanced mids in combination with the S112, S118 or S218 subwoofers. The BEM-optimized constant directivity horn with the powerful 1? compression driver, which is well-known from the CONTOUR X series, specially developed for the rough and tumble of touring, has a dispersion angle of 80° x 60° and thus delivers a large sound area without causing excessive acoustic excitation on the walls or ceilings. The horn can be rotated, meaning that the FO?8 can be used upright, on its side or with altered horizontal and vertical dispersion. The compact speaker can therefore always be positioned optimally, even in small or architecturally complex rooms.

• Concept: Passive 2-way mid/high unit
• Cabinet principle: Bass reflex
• Power handling RMS: 200 W
• Power handling program: 400 W
• Power handling peak: 800 W
• Nominal impedance (According to EN 60268-5 (minimum value not less than 80% of nominal value)): 8 ohms
• Max. SPL average (1 m, 10 % THD @ 80 Hz - 20 kHz, (EN 60268-21), full space): 116 dB
• Max. SPL peak (1 m, 10 % THD @ 3.3 kHz, full space: 119 dB
• Sensitivity 1 W/1 m (80 Hz - 20 kHz, full space): 91 dB
• Crossover frequency: 3.2 kHz
• Frequency range -6 dB: 72 Hz - 20 kHz
• Frequency range -10 dB: 69 Hz - 20 kHz
• Dispersion angle -6 dB (horizontal x vertical): 80° x 60°
• Ball impact resistance (DIN 18032-3): certified (MPA University Stuttgart)
• IP protection class (EN 60529): not specified
• Low-/mid frequency: 1x 8" Sica cone speaker with ferrite magnet and 1.75" voice coil
• High frequency: 1 x 1" Sica compression driver with ferrite magnet and 1" voice coil
• Crossover: High pass: 18 dB/octave, low pass: 18 dB/octave
• High frequency protection circuit: Self-healing PTC fuse
• Horn: BEM-optimized constant directivity horn, rotatable
• Input : 1 x NL4 Speakon
• Output/parallel output: 1 x NL4 Speakon
• Pin assignment: 1+/- (input/parallel output), 2+/- (wired through)
• Lab.Gruppen: IPX
• LEA Professional: Sharkware
• Filter specifications in tabular form for frequency response equalization Without limiter specifications: BiampTesira BSS Lab.gruppen Lake Linea Research Marani Powersoft QSC Q-SYS Symetrix
• Mounting points: 2 x M8 lateral, 2 x M8 bottom/lid, 1 x M8 rear, 4 x M4 rear
• Cabinet material: MDF
• Cabinet surface: 1-component acrylic enamel
• Color: Jet black (RAL 9005), signal white (RAL 9003) or special color according to catalog
• Front grille: Steel front grille with anticorrosive coating, backed acoustic foam
• Optional accessories: U-bracket, screw-on flange SF-35, swivel and tilt wall mount (size S for VESA MIS-D, 100 x 100 mm), AP-8
• Rear hole pattern: VESA MIS-D (100 x 100 mm
