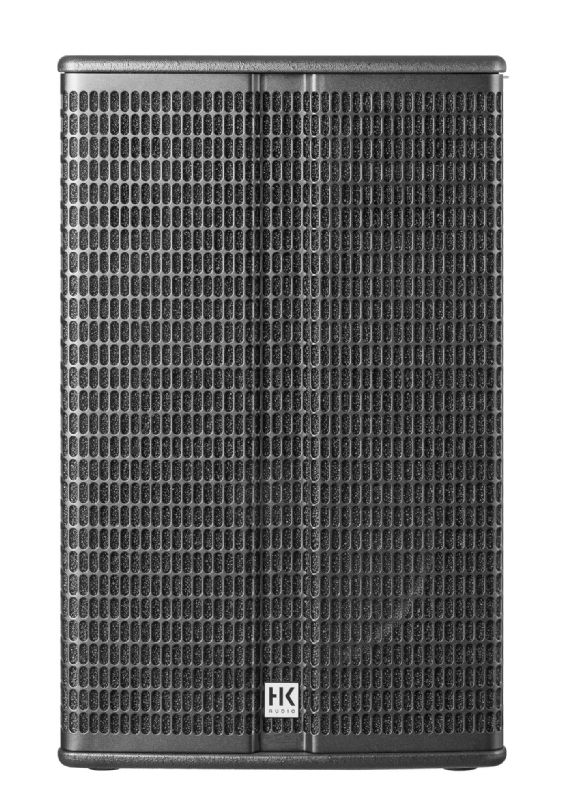

Compared to the 12? version, the active 15?/1? speaker offers even more depth with the same features. Especially in standalone use, it impresses with powerful bass and a balanced, crystal-clear sound across the entire frequency spectrum.

• Max. SPL @ 10% THD: 126 dB half space (58 Hz – 12 kHz averaged)
• Max. SPL peak @ 10 % THD: 135 dB half space
• Frequency response +/-3 dB: 58 Hz – 16 kHz
• Frequency response -10 dB: 49 Hz – 18 kHz
• Power amp output (peak power): 1200 W
• Preamp: DSP (Time Alignment)
• Amp type: Class D - biamped
• Active protective circuits: Under-voltage, thermal, short circuit, over-current protection, subsonic filter, look ahead temperature control, peak, RMS and multiband limiters
• Low-/mid speaker: 1 x 15", 2.5" voice coil
• HF driver: 1", 1" voice coil
• Horn directivity: 90° x 55° CD horn
• Active crossover frequency: 2.3 kHz FIR X-over with 72 dB/oct.
• Analog inputs: 2x XLR combo balanced, 1x Stereo RCA
• Analog outputs: 2x XLR Thru balanced, 1x XLR Mix Out
• Input sensitivity: +4 dBu @ Gain center-notched
• Sensitivity switch: Line/Mic Input A
• Filter presets: 2 EQ switches: Bass Boost/Flat & Flat/Contour
• Mains connector: 1x IEC socket with V-Lock cord retainer
• Power consumption: 3 A / 220-240 V (6 A / 100-120 V) nominal according to EN 60065
• Pole mount: DuoTilt 3°/7°
• Rigging points: 4x M8 (AP-8)
• Carrying handles: 2x MultiGrip
• Housing: 16 mm MDF
• Finish: Black acrylic enamel
• Front grille: 2 mm metal grille backed with black acoustic foam
• Dimensions (WxHxD): 44 x 69 x 44.5 cm 17-21/64 x 27-11/64 x 17-33/64"
• Weight: 27.9 kg / 61.5 lbs
