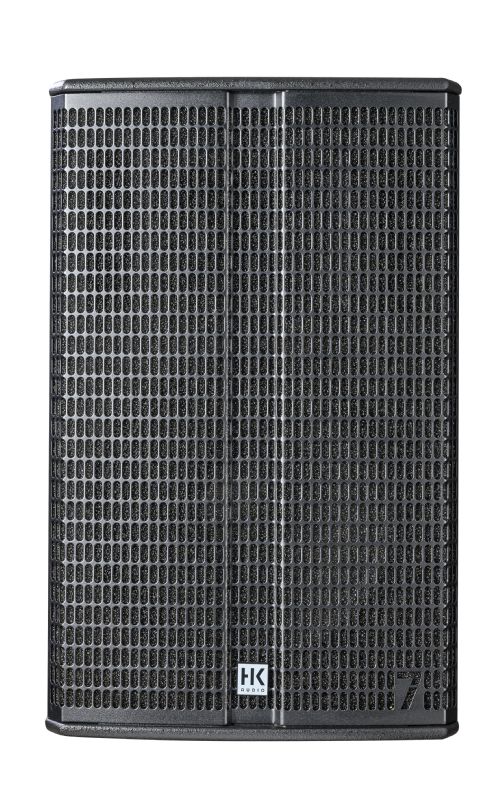

The LINEAR 7 115 FA active and network-compatible full-range speaker delivers more sound pressure in the low-frequency range thanks to its larger cabinet volume. With the Bass Boost preset optimised for each speaker, the low-frequency range can be boosted as required.

• Max. SPL @ 10% THD: 129 dB half space (70 Hz – 12 kHz averaged)
• Max. SPL peak @ 10 % THD: 134 dB half space
• Frequency response +/-3 dB: 57 Hz – 19 kHz
• Frequency response -10 dB: 54 Hz – 20 kHz <.Power amp output (peak power): 2000 W
• Amp type: Class D - biamped
• Low-/mid speaker: 1x 15", 3" voice coil
• HF driver: 1", 1.7" voice coil
• Horn directivity: 60° x 40° CD horn, rotatable
• Active crossover frequency: 1.5 kHz FIR X-over with 60 dB/oct.
• Maximum input level: +20 dBu
• Analog inputs: 1x XLR combo balanced
• Analog thru: 1x XLR balanced
• DSP Out: 1x XLR
• Network port: Ethercon RJ45, 1x In, 1x Thru
• Filter presets: Flat, Boost, Low Cut, Remote
• Remote software: DSP CONTROL (Windows, Mac OS)
• DSP functions: Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute
• Sample rate: 96 kHz
• System latency: Less than 2.6 ms
• Mains connector: 1x Powercon NAC3 In, 100–240 V
• Power consuption: 1 A / 100–240 V nominal according to EN 62368-1
• Clustering angle: 60°
• Pole mount: DuoTilt 3°/7°
• Rigging points: 4x M8 (AP-8)
• Carrying handles: 2x MultiGrip
• Housing: Hybrid (birch multiplex/MDF)
• Finish: Black acrylic enamel
• Front grille: 2 mm metal grille backed with black acoustic foam
• Dimensions (WxHxD): 45 x 71 x 45 cm 17-23/32 x 27-61/64 x 17-23/32"
• Weight: 32 kg / 70.5 lbs
