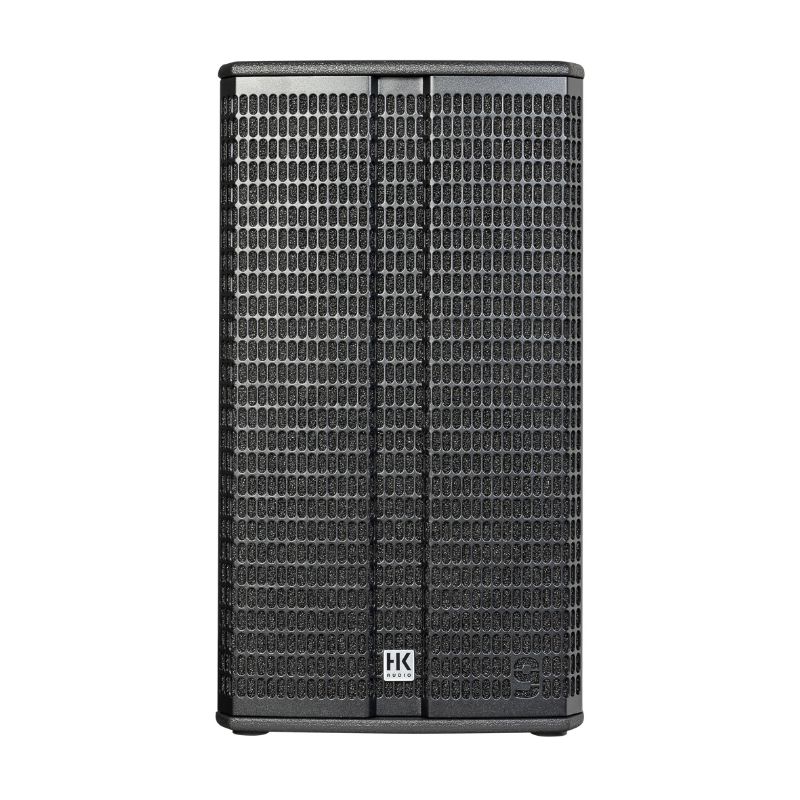

The dispersion angle of each speaker’s horn is optimised for its intended use. The 12" LINEAR 9 112 XA speaker offers a dispersion angle of 70° x 50 for medium sound coverage depths. It can be rigged either via the rigging points (steel cables or chains in combination with the AP-8 attachment point) or with the TB-28N tilt bracket.

• Max. SPL @ 10% THD: 128 dB half space (70 Hz – 12 kHz averaged) Max. SPL peak @ 10 % THD: 131 dB half space Frequency response +/-3 dB: 67 Hz – 19 kHz Frequency response -10 dB: 62 Hz – 20 kHz Power amp output (RMS): 700 W Amp type: Class D - biamped LF driver: N/A Low-/mid speaker: 1x 12", 2.5" voice coil HF driver: 1", 1.7" voice coil Horn directivity: 70° x 50° CD horn, rotatable Active crossover frequency: 1.6 kHz FIR X-over with 60 dB/oct. Maximum input level: +20 dBu Analog inputs: 1x XLR combo balanced Analog thru: 1x XLR balanced DSP Out: 1x XLR balanced Network port: Ethercon RJ45, 1x In, 1x Thru Filter presets: Flat, Monitor, Low Cut, Remote Remote software: DSP CONTROL (Windows, macOS) DSP functions: Fully parametric 10-band EQ with variable filter characteristics, High-Pass Filter, Low-Pass Filter, Polarity, Level, Delay, Limiter, Mute Sample rate: 96 kHz System latency: Less than 2.6 ms Mains connector: 1x Powercon NAC3 In, 1x Powercon NAC3 Thru, 100–240 V Power consuption: 1 A / 100–240 V nominal according to EN 62368-1 Clustering angle: N/A Angles up (Monitor angle): 30° Pole mount: DuoTilt 3°/7° Rigging points: 5x M8 (AP-8) Carrying handles: 1x SingleGrip, 1x MultiGrip Housing: Birch multiplex Finish: PU coating black Front grille: 2 mm metal grille backed with black acoustic foam Dimensions (WxHxD): 37 x 67 x 31 cm 14-9/16 x 26-3/8 x 12-13/64" Weight: 20.5 kg / 45.2 lbs
